Vertical Baler Range – B SERIES

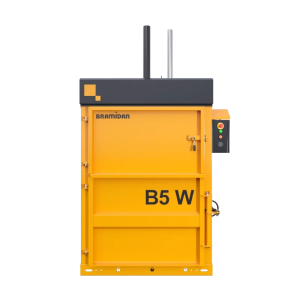

B5 Wide Baler
- Waste Types
- Cardboard, Plastic foil, Paper
- Waste Volume
- Small
- Feed Opening
- 1000 x 500 mm
- Bale Size
- 1000 x 700 x 800 mm
- Press Force
- 5 t
- Bale Weight
- Cardboard: 80-110 kg
Plastic foil: 90-130 kg
The B5 Wide baler is characterised by a wide filling opening of 1 metre. It is specially designed to handle bulky materials like plastic and cardboard.
For large and bulky materials
An extra wide baler designed to handle large and bulky materials. The largest boxes can be thrown right in without being broken down.
Easy installation and wide application
This baler operates on a single phase power supply, which makes it easy to install in a wide variety of environments.
B5 Wide – Perfect for handling large boxes:
- High capacity – large output
- Wide filling opening (1 metre)
- Efficient retainers hold compressed material down
- The bale is tipped out automatically
- Front-placed strap rolls for easy strap change
- Operates on single phase power supply
- Complies with EU Safety Standard EN16500
- Powder Coating provides durable finish in many colors.
World Class Balers

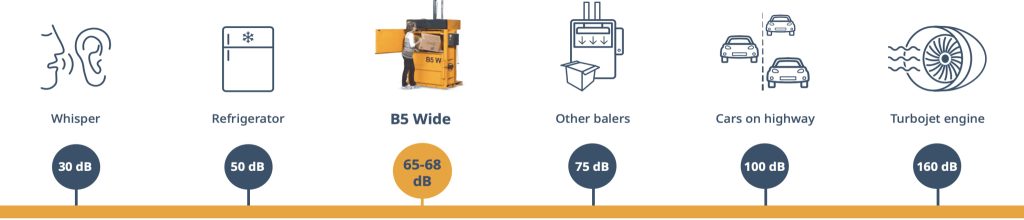

As quiet as an Air Conditioner
How does the B5 Wide baler work?
Time-saving and easy waste handling

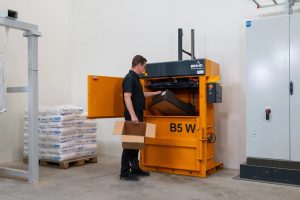

- Fill your plastic or cardboard waste into the baler.
- A full-light indicator tells you when the chamber is full.

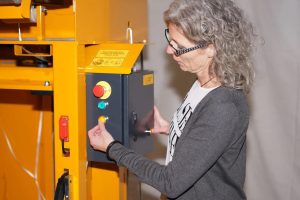

- Tie off and eject the finished bale.

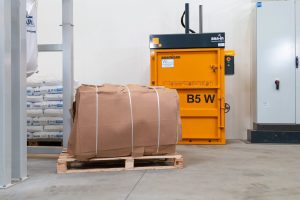

- Remove the bale and store until collection.
The B5 Wide baler is safe and easy to operate: Our machines has the highest level of safety – don’t settle with less!
Bale weight cardboard (kg): 80-110
Bale weight plastic foil (kg): 90-130
Press force (t): 5
Power supply: 1x230V 50Hz 10A
Motor (kW): 1.1
Noise Level (dB): 65-68
Cycle time avg. (sec): 33
Dimensions WxDxH (mm): 1360 x 895 x 2370
Weight (kg): 600
Feed opening WxH (mm): 1000 x 500
Filling height (mm): 915
Chamber height (mm): 1305
Stroke (mm): 750
Number of ties: 3
Type of tying: Twine
Full bale light: Yes
Bale eject: Automatic
Waste Volume: Small
