Vertical Baler Range – B SERIES

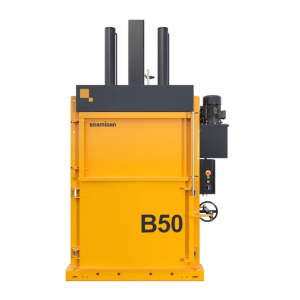

B50 Baler
- Waste Types
- Cardboard, Plastic foil, Paper
- Waste Volume
- Large
- Feed Opening
- 1200 x 565 mm
- Bale Size
- 1200 x 800 x 1100 mm
- Press Force
- 50 t
- Bale Weight
- Cardboard: 400-500 kg
Plastic foil: 450-550 kg
The B30W is a flexible and hardworking machine for many types of recyclables. The wide filling opening makes it easy to fill in larger boxes and other bulky waste.
For optimal transport logistics
The B50 baler offers efficient compaction into dense bales with ideal dimensions for optimal transport logistics.
Perfect pallet size bales
Bales measure 1200 mm x 800 mm x 1100 mm and fit on a standard EUR pallet.
B50 – Hard working high capacity baler:
- Machine design and demountable cylinder give a low transport height
- Uses standard 16A outlet
- Short press cycle
- Low noise level
- High compression ratio
- Produces large bales (minimum 400 kg cardboard)
- Powder Coating provides durable finish in many colors.
World Class Balers
As quiet as an Air Conditioner
How does the B50 baler work?
Time-saving and easy waste handling
- Fill your plastic or cardboard waste into the baler.
- A full-light indicator tells you when the chamber is full.
- Tie off and eject the finished bale.
- Remove the bale and store until collection.
The B50 baler is safe and easy to operate: Our machnies has the highest level of safety – don’t settle with less!
Bale weight cardboard (kg) 400-500
Bale weight plastic foil (kg) 450-550
Press force (t) 50
Power supply 3x400V 50Hz 16A
Motor (kW) 4.0
Noise Level (dB) 62-64
Cycle time avg. (sec)5 5 / 26
Dimensions WxDxH (mm) 1820 x 1320 x 3110
Weight (kg) 1755
Feed opening WxH (mm) 1200 x 565
Filling height (mm) 1165
Chamber height (mm) 1600
Stroke (mm) 900
Number of ties 4
Type of tying Twine / Steel wire
Full bale light Yes
Bale eject Automatic
Waste volume Large
